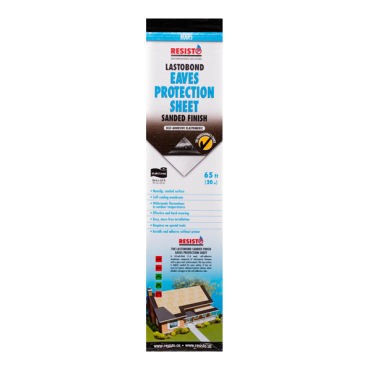

ICE & WATER PROTECTOR - LASTOBOND SANDED FINISH

This membrane is a 1.6 mm self-adhesive waterproofing membrane made of elastomeric SBS bitumen with a glass mat reinforcement. The surface is sanded and the underface is a silicone split-back release film.


Benefits

  • Anti-slip sanded surface
  • Self-sealing around screws and nails
  • Resistant to outdoor temperature changes
  • Effective and hard-wearing
  • Clean and easy installation
  • No special tools required
  • Ne requiert aucun outil spécialisé

Tests and certifications

CCMC-13184
Florida-BC-Certification
ICC-ES-Certification
Miami-Dade-Certification
ULC
Texas-Department-of-Insurance
ISO-9001
ISO-14001
CSA-A123-22-08

Function

Waterproofing

Product Roles

Eave Protectors

Building Component

Roofs

Technology

SBS modified bitumen

Types of Slope

Outside steep slope

Type of covering

Asphalt shingles

Substrates

  • Plywood
  • OSB
  • Asphaltic panel

Surface

Sand

Underface

Two parts silicone release film (split-back)

Reinforcement

Glass mat

Application

Self-adhesive

Service temperature

-45 °C to 90 °C (-49 °F to 194 °F)

Thickness

1.6 mm (63 mils)

UV exposure

Cover as soon as possible

Storage instructions

Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 10 ° C (50 °F) before installation.

Minimum application temperature

5 °C (41 °F)

Tools required

  • Knife
  • Tape measure
  • Smoothing roller

Surface Preparation

The substrate must be clean, dry, and free of dust, grease or other contaminants.

Restrictions

It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride. Asphalt shingles must be installed the same day as the application. Do not use under a metal roof.

previous-photo-0
LASTOBOND SANDED FINISH

Products

Product code

Width

Length

Gross area

Net area

Weight

Weight per skid

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Product code

00151

Width

0.91 m (36 in)

Length

10 m (33 ft)

Gross area

9.10 m² (99,0 ft²)

Net area

8.3 m² (90 ft²)

Weight

684 kg (1 508 lb)

Weight per skid

Without box

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Product code

00167

Width

0.91 m (36 in)

Length

10 m (33 ft)

Gross area

9.10 m² (99.0 ft²)

Net area

8.3 m² (90 pi²)

Weight

18 kg (39 lb)

Weight per skid

684 kg (1,508 lb)

With box

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Product code

00166

Width

0.91 m (36 in)

Length

20 m (65 ft)

Gross area

18.2 m² (195.0 ft²)

Net area

16.4 m² (178 pi²)

Weight

33 kg (73 lb)

Weight per skid

851 kg (1,875 lb)

With box

Products

Barcodes

Product code

Units per box

Units per skid

Boxes per skid

Weight per skid

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Barcodes

Product code

00151

Units per box

Units per skid

Boxes per skid

Weight per skid

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Barcodes

6 23680 00167 1

Product code

00167

Units per box

1

Units per skid

36

Boxes per skid

36

Weight per skid

684 kg (1,508 lb)

ICE & WATER PROTECTION MEMBRANE LASTOBOND SANDED FINISH

Barcodes

6 23680 00166 4

Product code

00166

Units per box

1

Units per skid

25

Boxes per skid

25

Weight per skid

851 kg (1,875 lb)
