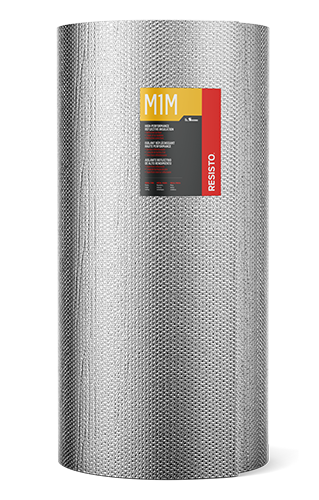

M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
This product is a 4 mm thick reflective insulation consisting of a layer of air bubbles laminated between two metallized polyethylene sheets.
Benefits
- Quick and easy to install
- Reduces condensation, air infiltration, and energy costs
- Reduces inside heat gains and provides an excellent R-value
- Protects livestock
- Reliable, long-lasting vapour barrier
- Prevents condensation and is not affected by mould
- Available in rolls up to 8 ft (2.5 m) wide
- Easy to clean and provides a good-looking finish
Tests and certifications
Properties
Function
Insulation
Product Roles
Insulation
Building Component
- Walls
- Ceilings and Attics
- Indoor Applications
Characteristics
Surface
Metallized polyethylene
Service temperature
-45 °c to 82 °C (-50 °F à 180 °F)
Thickness
4 mm (156 mils)
UV exposure
UV resistant
Instructions
Storage instructions
Keep the rolls in an upright position at all time in a dry area.
Tools required
- Knife
- Tape measure
Warnings
Product must be installed in combination with rigid insulation when used with poured-in radiant water heating systems. Consult heating system manufacturers to know more about rigid insulation requirements. Ensure that the product is installed according to building codes and municipal or government authorities’ requirements.
Restrictions
Concrete is usually poured over the white side of A1V. If reflective surface must be in contact with concrete, the surface must be protected – or AYR-FOIL CA2P, which is especially designed for concrete floor applications, could be used instead.
Previous identity
Conditioning
Products
Product code
Width
Length
Gross area
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Product code
55022
Width
121.92 cm (48 in)
Length
3.81 m (12.5 ft)
Gross area
4.65 m² (50 ft²)
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Product code
55052
Width
121.92 cm (48 in)
Length
19 m (62.5 ft)
Gross area
23.23 m² (250 ft²)
Without box
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Product code
55051
Width
243.84 cm (96 in)
Length
38.1 m (125 ft)
Gross area
92.9 m² (1000 ft² )
Without box
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Product code
55062
Width
121.92 cm (48 in)
Length
38.1 m (125 ft)
Gross area
46.45 m² (500 ft²)
Palletization
Products
Barcodes
Product code
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Barcodes
6 23680 55022 3
Product code
55022
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Barcodes
6 23680 55052 0
Product code
55052
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Barcodes
6 23680 55051 3
Product code
55051
M1M HIGH-PERFORMANCE REFLECTIVE INSULATION
Barcodes
6 23680 55062 9
Product code
55062
