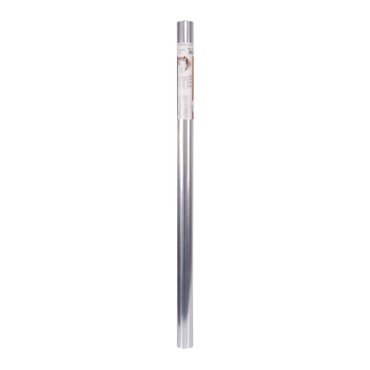

REFLECTIVE VAPOR BARRIER

Reflective vapour barrier for walls and ceilings installed between the drywall and insulation to block humidity and protect insulation. The insulating properties of the reflective surface make this a unique product because it increases the R-value of the existing insulation system.


Benefits

  • Increases insulation value up to 20%
  • Stops moisture to protect insulation
  • Keeps the house cooler in summer
  • Meets the requirements of CGSB Standard 51.33-M89
  • Opaque, with better tear resistance

Tests and certifications

CAN-CGSB-51-33-M89
ISO-9001
ISO-14001

Function

Insulation

Product Roles

Insulation

Building Component

  • Walls
  • Ceilings and Attics

Surface

Metallized polyethylene

Underface

Polyethylene

Thickness

0.076 mm (3 mils)

Storage instructions

Keep in a dry area.

Tools required

  • Knife
  • Tape measure

Warnings

Product is a vapour barrier. Ensure that the product is installed according to building codes and municipal or government authorities’ requirements.

AYR-FOIL IFLEX REFLECTIVE VAPOUR BARRIER

Products

Product code

Width

Length

Gross area

Weight

REFLECTIVE VAPOR BARRIER

Product code

55208

Width

1.32 m (52 in)

Length

31.7 m (104 ft)

Gross area

41.84 m² (450 ft²)

Weight

3.5 kg (7.7 lb)

With box

Products

Barcodes

Product code

Units per box

REFLECTIVE VAPOR BARRIER

Barcodes

6 23680 55208 1

Product code

55208

Units per box

6
