TRANSITION WATERPROOFING MEMBRANE

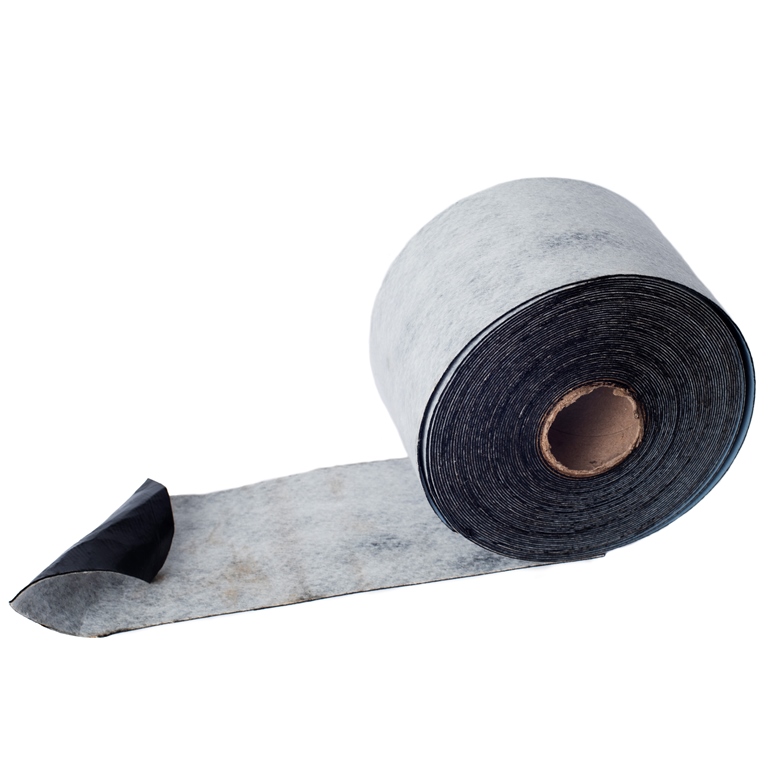

This product is a 1.2 mm self-adhesive membrane composed of elastomeric SBS bitumen and an exposed non-woven polyester reinforcement. The TRANSITION WATERPROOFING MEMBRANE is used as a cover strip over ICF WATERPROOFING MEMBRANE top terminations and as an air and moisture barrier for transitions in exterior insulation and finish systems (EIFS) or stucco systems.
Benefits
- Extends the life of foundations
- Easy installation thanks to the self-adhesive coating
- Durable
Tests and certifications
Properties
Function
Waterproofing
Product Roles
Cover Strips
Building Component
Foundations
Technology
SBS modified bitumen
Characteristics
Substrates
- Wood
- Metal
- Concrete
- Polystyrene
- Gypsum
- SBS modified bitumen membrane
Surface
Polyester reinforcement
Underface
Silicone release film
Application
Self-adhesive
Service temperature
Up to 70 °C (158 °F)
Thickness
1.2 mm (47 mils)
UV exposure
30 days
Instructions
Storage instructions
Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 10 ° C (50 °F) before installation.
Minimum application temperature
5 °C (41 °F)
Tools required
- Knife
- Tape measure
- Smoothing roller
Surface Preparation
The substrate must be clean, dry, and free of dust, grease or other contaminants.
Warnings
The product is an air/vapour barrier. The dew point must be determined by a professional.
Restrictions
It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride.
Previous identity
Conditioning
Products
Product code
Width
Length
Gross area
Weight
TRANSITION WATERPROOFING MEMBRANE STT
Product code
1204072
Width
50 cm (19.7 in)
Length
16.76 m (55 ft)
Gross area
8.38 m² (90.3 ft²)
Weight
8.25 kg (18.2 lb)
With box
TRANSITION WATERPROOFING MEMBRANE STT
Product code
1204079
Width
11 cm (4.3 in)
Length
16.76 m (55 ft)
Gross area
1.84 m² (19.7 ft²)
Weight
1.8 kg (4 lb)
With box
TRANSITION WATERPROOFING MEMBRANE STT
Product code
1204076
Width
15 cm (5.9 in)
Length
16.76 m (55 ft)
Gross area
2.51 m² (27 ft²)
Weight
2.8 kg (6.1 lb)
With box
TRANSITION WATERPROOFING MEMBRANE STT
Product code
1204074
Width
25 cm (9.8 in)
Length
16.76 m (55 ft)
Gross area
4.19 m² (44.9 ft²)
Weight
4.1 kg (9.1 lb)
With box
TRANSITION WATERPROOFING MEMBRANE STT
Product code
1204073
Width
33 cm (13 in)
Length
16.76 m (55 ft)
Gross area
5.53 m² (59.5 ft²)
Weight
5.5 kg (12.1 lb)
With box
Palletization
Products
Barcodes
Product code
Units per box
Units per skid
Boxes per skid
TRANSITION WATERPROOFING MEMBRANE STT
Barcodes
6 23680 20043 2
Product code
1204072
Units per box
2
Units per skid
48
Boxes per skid
24
TRANSITION WATERPROOFING MEMBRANE STT
Barcodes
6 23680 20039 5
Product code
1204079
Units per box
9
Units per skid
216
Boxes per skid
24
TRANSITION WATERPROOFING MEMBRANE STT
Barcodes
6 23680 20040 1
Product code
1204076
Units per box
6
Units per skid
144
Boxes per skid
24
TRANSITION WATERPROOFING MEMBRANE STT
Barcodes
6 23680 20041 8
Product code
1204074
Units per box
4
Units per skid
96
Boxes per skid
24
TRANSITION WATERPROOFING MEMBRANE STT
Barcodes
6 23680 20042 5
Product code
1204073
Units per box
3
Units per skid
72
Boxes per skid
24
