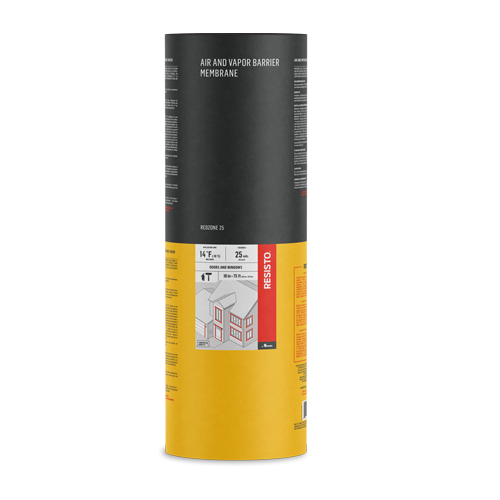

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

This product is a 0.635 mm self-adhesive membrane composed of elastomeric SBS bitumen and trilaminate woven polyethylene. The underface is composed of a silicone release film. It ensures air and vapor sealing around doors and windows.


Benefits

  • Provides continuous air and vapor barrier
  • Eliminates air drafts and water infiltration
  • Constant thickness
  • Self-sealing around nails and screws
  • UV resistant (90-day exposure)
  • Can be sprayed with polyurethane foam
  • Remains Flexible at low temperatures
  • Clean and easy installation
  • No special tools required

Tests and certifications

ISO-9001
ISO-14001
AAMA-Certification

Function

Waterproofing

Product Roles

  • Air/Vapour-Barrier Membranes
  • Flashing Membranes

Building Component

  • Walls
  • Doors and Windows

Technology

SBS modified bitumen

Types of Slope

Any types of slopes

Substrates

  • Plywood
  • OSB
  • Polystyrene
  • Gypsum

Surface

Trilaminate woven polyethylene

Underface

Silicone release film

Application

Self-adhesive

Service temperature

-45 °C to 90 °C (-49 °F to 194 °F)

Thickness

0.635 mm (25 mils)

UV exposure

90 days

Storage instructions

Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 10 ° C (50 °F) before installation.

Minimum application temperature

-10 °C (14 °F)

Tools required

  • Knife
  • Tape measure
  • Smoothing roller
  • Roller

Surface Preparation

The substrate must be clean, dry, and free of dust, grease or other contaminants.

Restrictions

It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride.

previous-photo-0
REDZONE 25

Products

Product code

Width

Length

Gross area

Net area

Weight

Weight per skid

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17753

Width

10 cm (4 in)

Length

22.9 m (75 ft)

Gross area

2.29 m² (25.0 ft²)

Net area

2.3 m² (25 pi²)

Weight

1.35 kg (3 lb)

Weight per skid

499 kg (1,080 lb)

With box

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17754

Width

15 cm (6 in)

Length

22.9 m (75 ft)

Gross area

3.44 m² (37.5 ft²)

Net area

3.4 m² (38 pi²)

Weight

2.04 kg (4.5 lb)

Weight per skid

499 kg (1,080 lb)

With box

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17755

Width

23 cm (9 in)

Length

22.9 m (75 ft)

Gross area

5.27 m² (56.3 ft²)

Net area

5.3 m² (56 pi²)

Weight

3.05 kg (6.7 lb)

Weight per skid

499 kg (1,080 lb)

With box

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17756

Width

30 cm (12 in)

Length

22.9 m (75 ft)

Gross area

6.87 m² (75.0 ft²)

Net area

6.9 m² (75 pi²)

Weight

4.07 kg (9 lb)

Weight per skid

499 kg (1,080 lb)

With box

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17757

Width

46 cm (18 in)

Length

22.9 m (75 ft)

Gross area

10.53 m² (112.5 ft²)

Net area

10.5 m² (113 pi²)

Weight

6.11 kg (13.47 lb)

Weight per skid

499 kg (1,080 lb)

With box

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Product code

17752

Width

91 cm (36 in)

Length

22.9 m (75 ft)

Gross area

20.84 m² (225.0 ft²)

Net area

19.6 m² (212 pi²)

Weight

12.23 kg (26.97 lb)

Weight per skid

499 kg (1,080 lb)

Without box

Products

Barcodes

Product code

Units per box

Units per skid

Boxes per skid

Weight per skid

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17753 6

Product code

17753

Units per box

9

Units per skid

324

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17754 3

Product code

17754

Units per box

6

Units per skid

216

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17755 0

Product code

17755

Units per box

4

Units per skid

144

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17756 7

Product code

17756

Units per box

3

Units per skid

108

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17757 4

Product code

17757

Units per box

2

Units per skid

72

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)

AIR AND VAPOR BARRIER MEMBRANE REDZONE 25

Barcodes

6 23680 17752 9

Product code

17752

Units per box

1

Units per skid

36

Boxes per skid

36

Weight per skid

499 kg (1,080 lb)
