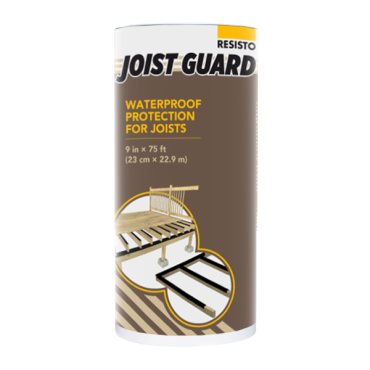

JOIST GUARD

Provides waterproof protection for joists that prevents rotting of structural timber under exterior floors, such as patios and balconies. It is a 0.635 mm self-adhesive membrane composed of SBS elastomeric bitumen with a surface made of polyethylene and an underface covered with a silicone release film. Four-inch rolls are ideal for two-inch- wide joists, while nine-inch rolls are used on double joists at the perimeter of the structure and to seal the joint between the wall of the house and the patio.


Benefits

  • Substantially extends the service life of the patio at low cost
  • Barely visible between the boards
  • Self-sealing membrane around fasteners
  • Pattern-free black membrane, thus unnoticeable through the decking
  • Easy installation at any temperature
  • Compatible with most decking materials, such as treated wood and composite
  • Excellent flexibility

Tests and certifications

ISO-9001
ISO-14001

Function

Waterproofing

Product Roles

Joist Guards

Building Component

Decks and Balconies

Technology

SBS modified bitumen

Substrates

  • Wood
  • Treated wood

Surface

HDPE

Underface

Silicone release film

Application

Self-adhesive

Service temperature

-45 °C to 85 °C (-49 °F to 185 °F)

Thickness

0.6 mm (24 mils)

UV exposure

Cover as soon as possible

Storage instructions

Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 10 ° C (50 °F) before installation.

Minimum application temperature

-10 °C (14 °F)

Tools required

  • Knife
  • Tape measure
  • Smoothing roller

Surface Preparation

The substrate must be clean, dry, and free of dust, grease or other contaminants.

Restrictions

It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride. It is recommended to install the decking on joists within 48 hours of installation of JOIST GUARD. It is not designed for roofing applications.

JOIST GUARD

Products

Product code

Width

Length

Gross area

Net area

Weight

Weight per skid

WATERPROOFING JOIST GUARD

Product code

10094

Width

0.23 m (9 in)

Length

22.9 m (75 ft)

Gross area

5.27 m² (56.3 ft²)

Net area

5.3 m² (56 pi²)

Weight

3 kg (6.6 lb)

Weight per skid

442 kg (974 lb)

WATERPROOFING JOIST GUARD

Product code

10099

Width

0.10 m (4 in)

Length

22.9 m (75 ft)

Gross area

2.29 m² (25.0 ft²)

Net area

2.3 m² (25 pi²)

Weight

1.3 kg (2.9 lb)

Weight per skid

442 kg (974 lb)

Products

Barcodes

Product code

Units per box

Units per skid

Boxes per skid

Weight per skid

WATERPROOFING JOIST GUARD

Barcodes

6 23680 10094 7

Product code

10094

Units per box

4

Units per skid

144

Boxes per skid

36

Weight per skid

442 kg (974 lb)

WATERPROOFING JOIST GUARD

Barcodes

6 23680 10099 2

Product code

10099

Units per box

9

Units per skid

324

Boxes per skid

36

Weight per skid

442 kg (974 lb)
